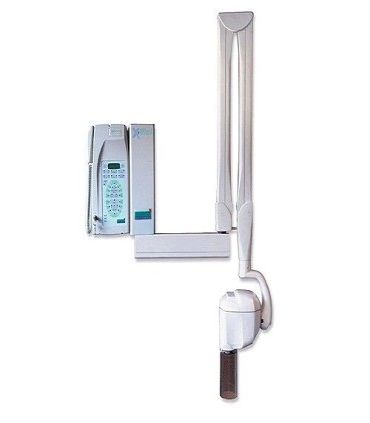

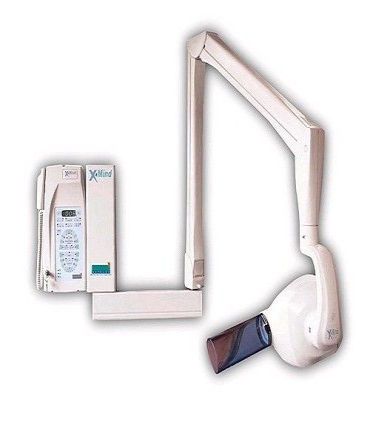

X-MIND DC EXTENDER ARMS 40 cm.

Xmind DC is functionally simple in design but at the same time is extremely sophisticated in features and benefits providing a single-phase and a high frequency system in one. A system which sets a new standard in quality and safety.

Read more
€3,560.55 (tax excl.)
Stock
Reference:
054F03085
Brand:
Description

Xmind DC is functionally simple in design but at the same time is extremely sophisticated in features and benefits providing a single-phase and a high frequency system in one. A system which sets a new standard in quality and safety.

It has been engineered to work at high frequency mode. - its simple, intuitive anatomical controls assure perfect x-ray radiographic results with any patient and technique. - its simplicity of use provides the radiological operator with complete control and a significant savings of time and money.



Main features:
 it is a high frequency system at constant potential, that allows the output of very good quality radiations during every use condition
Xmind DC can supply 60/70kV or 4/8mA to optimize the diagnostic value of the intra-oral exposures. It reduces the exposure times of 35% in comparison with the single-phase system
it is properly protected against radiation leakage (according to IEC standard: less than 0,25 mGy/h at 1m, the real value can be considerabily less than 0,1 mGy/at 1 m);
the focus / skin distance of 12-inch (31cm.) (standard) helps to maximize the use of the paralleling technique. - with the short cone (optional) the distance is reduced to 8-inch (20cm.);

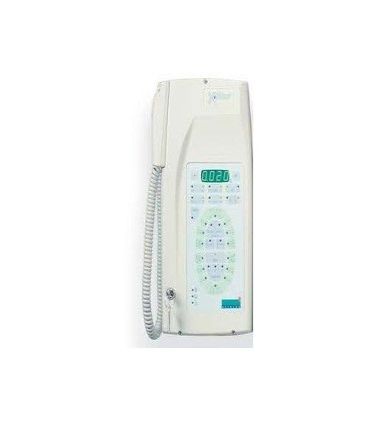

the Xmind DC timer is a new design suitable to satisfy the most recent hardware and software standards;
it is easy to read and fast to set up. - the huge possibility of choosing the pre-set exposure times can be modified when the operator wants to get values suitable to a more personal use;
the exposure time charts are arranged for films type "D""E""F" and for most part of digital imaging systems and it is best suited for the ultimate generation of digital radiology devices Xmind DC digital.
visual and audible signals indicate that the x-ray exposure has been made;
it has the possibility to connect the red warning light (Xmind DC light) outside the x-ray room;
it has the possibility to connect the exposure control button (with safety key) of the timer outside the x-ray room (xgenus® exposure control button);
the automatic self-test assures proper operation of all electronic functions (error codes immediately indicate any faults);
the safety key is an additional way to prevent improper use of the unit when the system is switched off;
it displays the line voltage and collect the operating data during the use;

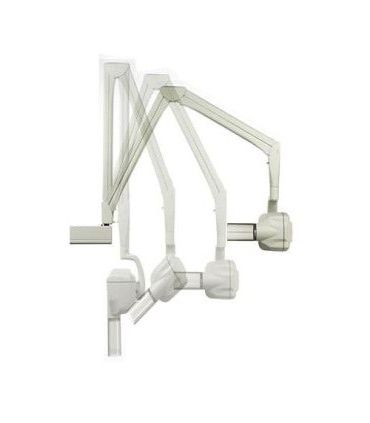

the pantograph arm assures smooth, accurate and firm control. the installation of the system is easy and very fast.

Read more
Product Details
054F03085
